Lug Butterfly Valve

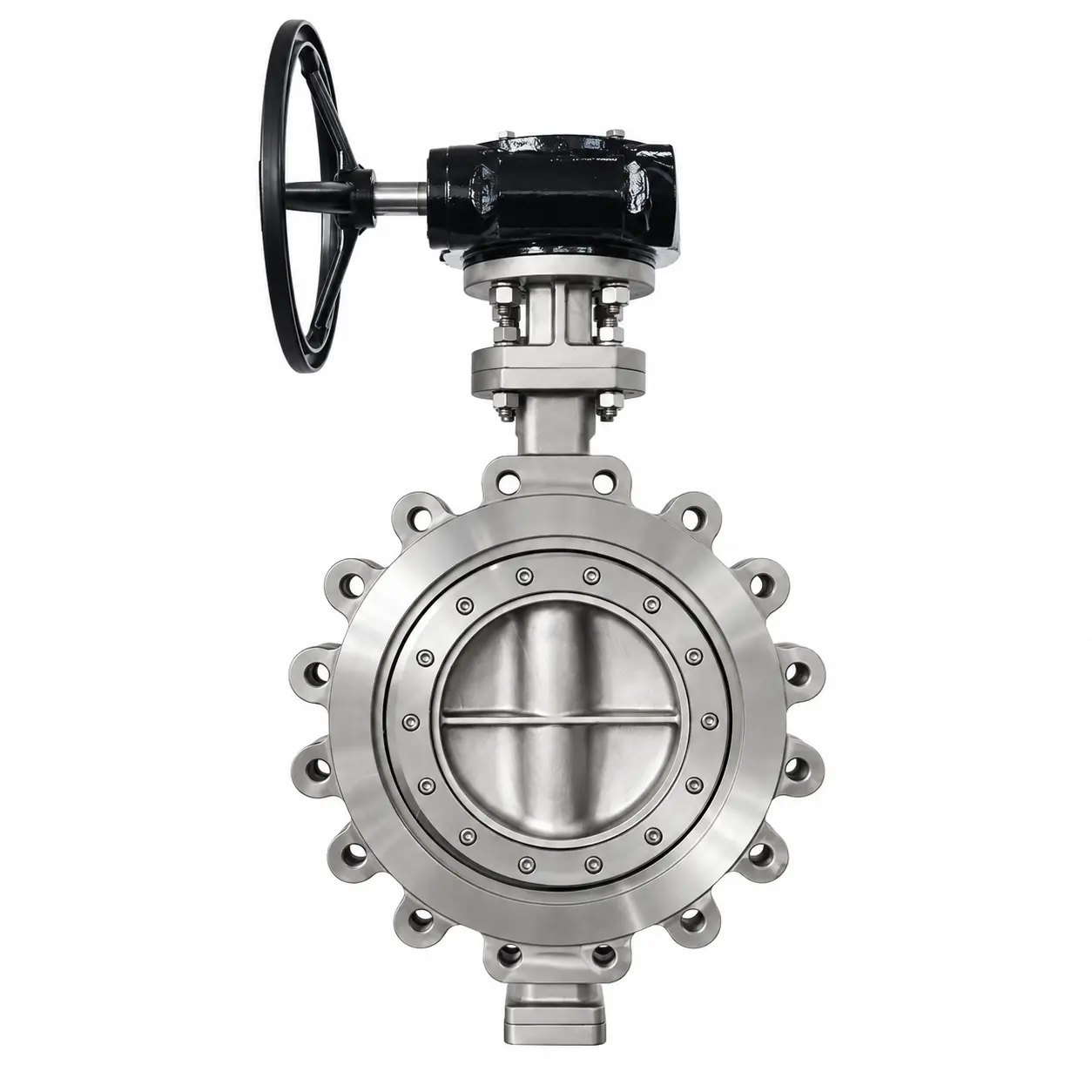

Gear-operated industrial lug butterfly valve

Product Overview

Lug Type Butterfly Valve for Maintenance-Friendly Piping

When a pipeline may need one-side maintenance or downstream pipe removal, the valve body connection matters as much as the valve type. A lug butterfly valve uses threaded lugs around the body, allowing each flange side to be bolted separately instead of relying only on long through bolts.

Lug butterfly valves are used in industrial water, HVAC, chemical, utility and process systems where compact quarter-turn operation must also support practical maintenance planning. Depending on the service, the valve can be soft seated, metal seated, double offset or triple offset butterfly valve design.

If you are choosing between wafer and lug butterfly valves, do not compare only the first price. You should confirm dead-end service requirements, flange standard, bolt arrangement, pressure rating, seat material, medium, temperature, actuator needs and the maintenance plan for the pipeline.

Request a Quote

Specifications

Typical Lug Butterfly Valve Options

Final materials, pressure rating and end-use suitability should be confirmed against the project specification and line conditions.

Design Range

Valve Type	Lug butterfly valve, lug type butterfly valve or lug triple eccentric butterfly valve
Body Style	Threaded lug body for separate flange bolting on each side
Sealing Design	Soft seated, metal seated, double offset or triple offset options
Operation	Lever, gearbox, pneumatic actuator, electric actuator or bare shaft

Materials & Documents

Body Material	Ductile iron, carbon steel, stainless steel or project-specified material
Disc Material	Stainless steel, carbon steel, ductile iron or coated disc options
Seat Material	EPDM, NBR, PTFE, laminated metal seat or other project-specific options
Documents	Drawings, pressure test reports, material certificates and packing list available

Selection Guide

When a Lug Butterfly Valve Fits the Project

Lug type is useful when maintenance access and flange-side independence matter, but the allowable pressure and service condition still need supplier confirmation.

One-Side Maintenance

Select lug butterfly valves when the piping design may require downstream equipment or pipe sections to be removed without completely disassembling both flange sides. This is a practical advantage in plant maintenance, pump rooms, utility loops and some process systems.

Dead-End Service Review

If the valve may hold pressure with one side disconnected, state that requirement clearly in the inquiry. Dead-end service depends on valve design, pressure rating and installation condition, so it should be confirmed before purchase instead of assumed from the lug body alone.

Compact Automated Lines

Lug butterfly valves remain compact compared with many full flanged valves and can be supplied with gearbox, pneumatic or electric actuation. For automated lines, confirm torque, cycle frequency, control signal and fail position early in the quotation process.

Comparison

Lug vs Wafer Butterfly Valve

Both designs are compact, but they solve different installation and maintenance problems. Use the table below before sending an inquiry.

Item	Lug Butterfly Valve	Wafer Butterfly Valve
Body connection	Threaded lugs allow each flange side to bolt directly to the valve body.	Usually clamped between two flanges with long through bolts or studs.
Maintenance	Better when one-side pipe removal or equipment isolation is part of the maintenance plan.	Best for economical inline installation when both flange sides remain assembled.
Dead-end use	Possible only when the design and pressure rating allow it; confirm with supplier.	Usually not selected for dead-end service unless specifically designed and approved.
Buying advice	Choose when maintenance flexibility justifies the body design and cost.	Choose when compact, economical flange-to-flange installation is the main requirement.

Applications

Where Industrial Lug Butterfly Valves Are Used

Lug butterfly valves are common where compact shutoff, fast operation and maintenance planning all need to be considered together.

Water treatment, wastewater and pump station systems
HVAC, cooling water and building utility pipelines
Chemical processing and plant utility lines
Skid-mounted systems and equipment isolation points
Higher-temperature service when metal seated or triple offset design is required

Business Fit

Who This Product Page Is For

This page is built for industrial lug butterfly valve inquiries from engineering contractors, project buyers, distributors and plant maintenance teams. Pioneer Valve can support lug type butterfly valve selection for soft seated, metal seated and triple eccentric applications with drawings, material review, pressure test documents and export packing.

Related Butterfly Valve Pages

Butterfly Valve Category

Review Pioneer Valve's butterfly valve range for wafer, lug, flanged and triple eccentric service.

View Category

Wafer Butterfly Valve

Compare compact wafer body options for flange-to-flange installation and economical inline isolation.

View Wafer Type

Triple Offset Butterfly Valve

Review triple offset design for metal seated, high temperature and critical shutoff applications.

View Triple Offset

Butterfly Valve Types

Understand concentric, double offset and triple offset butterfly valve structures before selection.

Read Types

Butterfly vs Ball Valve

Compare shutoff, pressure drop, operation speed and installation cost for industrial pipelines.

Compare Valves

Request Technical Quote

Send your service condition so the team can confirm body style, seat material and actuation.

Contact Sales

Inquiry Checklist

What to Send for an Accurate Lug Butterfly Valve Quote

A complete inquiry helps the supplier confirm whether lug type is necessary and whether the valve design fits the service.

Valve SizeDN or NPS size and quantity.

Pressure RatingPN, Class, JIS or project-specific pressure rating.

Flange StandardASME, EN, DIN, JIS or project flange requirement.

Service NeedNormal inline use, one-side maintenance or dead-end service.

MediumWater, HVAC fluid, chemical fluid, oil, gas or utility service.

TemperatureOperating and maximum temperature for seat material selection.

MaterialsBody, disc, shaft and seat material requirements.

OperationLever, gearbox, pneumatic actuator, electric actuator or bare shaft.

FAQ

Lug Butterfly Valve FAQ

What is a lug butterfly valve?

A lug butterfly valve is a butterfly valve body with threaded lugs around the outside of the valve. Each pipeline flange can bolt directly to the valve body. This design is often selected when maintenance access, one-side pipe removal or dead-end service needs to be considered in the project.

What is the difference between lug and wafer butterfly valves?

A wafer butterfly valve is usually clamped between two flanges with long bolts passing around the valve body. A lug butterfly valve has threaded lugs, so each flange is bolted separately to the valve. Lug type is often preferred when downstream piping may need removal while the upstream side remains connected.

Can a lug butterfly valve be used for dead-end service?

A lug butterfly valve may be used for dead-end service when the valve design, body strength, pressure rating and supplier instructions allow it. Do not assume every lug type can handle full pressure in dead-end service. You should confirm the allowable pressure, flow direction and test requirement before ordering.

Where are lug butterfly valves commonly used?

Lug butterfly valves are commonly used in water treatment, HVAC, chemical processing, utility lines, plant maintenance systems and industrial piping where compact installation and easier maintenance are important. Metal seated or triple offset lug butterfly valves can also be considered for higher temperature or more demanding isolation service.

Can lug butterfly valves be supplied with actuators?

Lug butterfly valves can be supplied with lever, gearbox, pneumatic actuator, electric actuator or bare shaft configuration. For automation projects, confirm torque, actuator sizing, control signal, cycle frequency, fail position, site voltage, air supply and whether accessories such as limit switches or solenoid valves are required.

What information is needed for a lug butterfly valve quote?

A complete quote request should include size, pressure rating, flange standard, body material, disc material, seat material, medium, temperature, operation method and quantity. If dead-end service or one-side pipe removal is required, state it clearly so the supplier can confirm whether the selected lug butterfly valve is suitable.

Final Thoughts

Choose Lug Butterfly Valves When Maintenance Access Matters

A lug butterfly valve is useful when compact installation must also support maintenance planning or possible one-side pipe removal. Before ordering, confirm whether dead-end service is required, then review pressure rating, flange standard, seat material, temperature and actuator needs. Pioneer Valve can help match lug type butterfly valves to project conditions.
