Understanding Soft Seal (Soft-Seated) Ball Valves
A soft seal ball valve uses non-metallic seat rings made from polymers — most commonly PTFE, reinforced PTFE (RTFE), PEEK, or nylon. The polymer deforms slightly when the ball presses against it, conforming to the surface and producing an excellent, often bubble-tight seal even at low pressures.
Soft seats are the default for general industrial service: water, air, oil, and clean chemical media at moderate temperatures. They are economical, provide zero-leakage shut-off, and require modest operating torque. Their main limitation is the polymer itself — it softens above its temperature rating and is worn quickly by abrasive or erosive media.

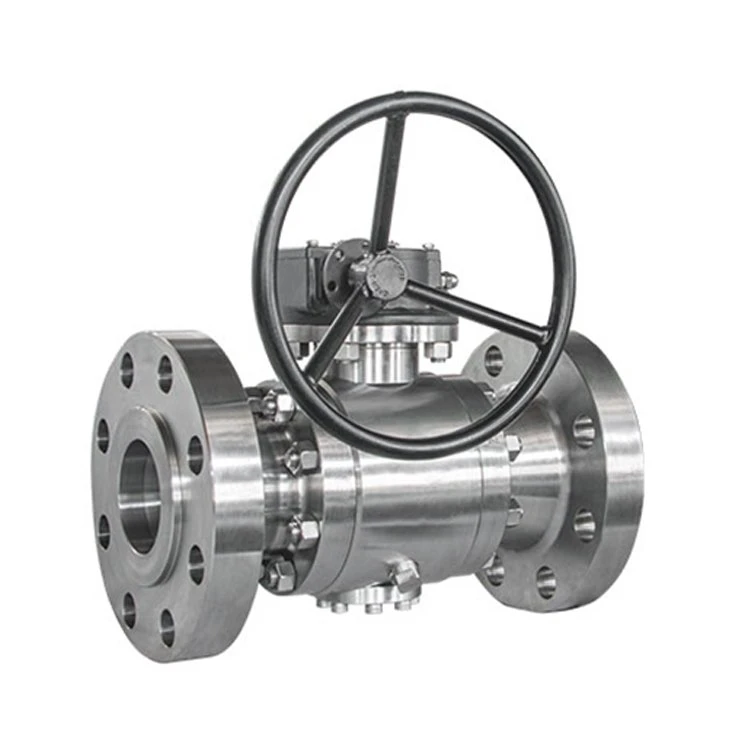

Understanding Hard Seal (Metal-Seated) Ball Valves
A hard seal ball valve seals metal-to-metal: both the ball surface and the seats are metal, usually with a hardfacing overlay such as stellite (cobalt-chromium), tungsten carbide, or chrome carbide. The mating surfaces are precision machined and lapped together so they seat tightly against each other.
This construction lets the valve survive conditions that would destroy a polymer seat — high temperature, high pressure, and abrasive or erosive flows such as slurries, catalyst, fly ash, and hot hydrocarbon streams. The trade-off is higher cost, higher operating torque, and a permissible leakage rate rather than absolute zero leakage.
Key Differences at a Glance
| Feature | Soft Seal (PTFE/PEEK) | Hard Seal (Metal) |
|---|---|---|
| Seat Material | PTFE, RTFE, PEEK, nylon | Metal with stellite / carbide hardfacing |
| Sealing Mechanism | Polymer deforms to conform | Lapped metal-to-metal contact |
| Shut-off Tightness | Bubble-tight (zero leakage) | Permissible leakage class |
| Temperature Range | Limited by polymer (see below) | High (up to ~500 C+ depending on design) |
| Abrasion / Erosion | Poor — wears quickly | Excellent — designed for it |
| Operating Torque | Lower | Higher |
| Media Suitability | Clean liquids, gases, mild chemicals | Slurries, abrasives, hot / high-pressure media |
| Cost | Lower | Higher |
Table notes: Figures are indicative engineering guidance; confirm against the governing standard and your specific service conditions.
Temperature and Pressure Capability
Temperature is usually the deciding factor. Soft seats are capped by their polymer: standard PTFE seats serve roughly up to 200 C (392 F), RTFE a little higher, and PEEK seats up to about 260 C (500 F). Beyond these limits the seat material softens, creeps, and loses its seal.
Metal seats have no such polymer limit. With suitable body materials and hardfacing they handle high-temperature steam, hot oil, and thermal cycling well above the range of any soft seat, and they support higher pressure classes where seat extrusion would be a risk for polymers.
Engineering note: Exact temperature and pressure limits depend on the specific seat compound, hardfacing, body material, and pressure class of the valve. Always confirm the rating against the manufacturer's seat data sheet rather than a general range — specifications marked "to be finalized" should be verified before procurement.
Leakage Class and Tightness
The most important practical difference is shut-off tightness. Soft-seated ball valves achieve zero-bubble, Rate A shut-off under standards such as ISO 5208 / API 598 — nothing passes when closed.
Metal-seated ball valves are normally rated to a permissible leakage class (for example ISO 5208 Rate D or C, or the corresponding API 598 allowance) rather than absolute zero. Where both high temperature and very tight shut-off are required, specially lapped or coated metal seats can be specified, but at additional cost. If your duty needs both bubble-tight isolation and clean, moderate-temperature media, a soft seat is the simpler and cheaper answer.
Selection Guide: Which Seat to Choose
Select the seat from temperature, media, and tightness requirements together — not from any single factor.
Choose Soft Seal When
- Bubble-tight zero-leakage shut-off is required
- Temperature is within the polymer rating
- Media is clean (water, air, oil, mild chemicals)
- Lower cost and lower torque matter
- General industrial isolation service
Choose Hard Seal When
- Temperature exceeds soft-seat limits
- Media is abrasive, erosive, or carries solids
- High pressure class risks seat extrusion
- Long service life under harsh duty is needed
- A permissible leakage class is acceptable
Related Resources and Product Pages
Frequently Asked Questions
Which is better, a metal seat or a soft seat ball valve?
Neither is universally better; it depends on service conditions. A soft (PTFE) seat ball valve gives bubble-tight shut-off at low cost for moderate temperatures and clean media. A hard (metal) seat ball valve withstands high temperature, high pressure, and abrasive or erosive media, but typically allows a small permissible leakage rate. Match the seat to temperature, media, and tightness needs.
What are the two types of ball valve seats?
The two types are soft seats and hard seats. Soft seats are made from polymers such as PTFE, RTFE, PEEK, or nylon and deform slightly to create a tight elastomeric seal. Hard seats are metal-to-metal, often with hardened overlays such as stellite or tungsten carbide, machined and lapped to seal against the ball under high temperature and abrasion.
Can a soft seal ball valve handle high temperature?
Soft seal ball valves are temperature-limited by their seat polymer. Standard PTFE seats serve roughly up to 200 C (392 F), while PEEK seats extend to around 260 C (500 F). Above these limits the polymer softens and loses sealing integrity, so hard (metal) seated ball valves are specified for high-temperature steam, hot oil, and similar service. Confirm the exact rating against the manufacturer seat data.
Does a hard seal ball valve cost more than a soft seal?
Yes. Hard (metal) seated ball valves cost significantly more than soft seated valves of the same size and class because the ball and seats require hardfacing, precision machining, and lapping to achieve a metal-to-metal seal. The premium is justified where high temperature, high pressure, or abrasive media would quickly destroy a soft seat.
Are metal seated ball valves bubble-tight?
Metal seated ball valves are not usually bubble-tight; they are designed to a permissible leakage class rather than zero leakage. Typical metal-seated valves meet leakage rates such as API 598 or ISO 5208 Rate D/C, whereas soft-seated valves achieve zero-bubble Rate A shut-off. When both high temperature and absolute tight shut-off are required, special lapped or coated metal seats are specified.
