One-Piece vs Two-Piece vs Three-Piece Ball Valve: Maintenance, Cost & Selection Guide

What Are One-Piece, Two-Piece, and Three-Piece Ball Valves?

Ball valve "piece count" refers to how many separate pressure-retaining body components are bolted or threaded together around the ball and seats. This body construction directly affects leakage paths, port options, maintainability, and cost.

One-piece ball valve

A one-piece ball valve has a single, monolithic body casting or forging. The ball, seats, and stem are inserted through one end of the body (an end-entry ball valve configuration), then retained with a threaded or pressed-in end plug or by swaging the body.

Key characteristics:

• Single body with minimal external joints
• Typically reduced port because the ball must pass through the end bore during assembly
• Lowest material and machining cost
• Effectively non-repairable in the field; when internal components wear, the whole valve is usually replaced

This style is widely used as a compact, "throwaway" isolation valve where reliability requirements are moderate and replacement is cheaper than organized maintenance.

Two-piece ball valve

A two-piece ball valve is a split body ball valve composed of a main body and a single end cap or tail piece. These two pressure-containing halves are threaded or bolted together.

Key characteristics:

• One main body + one cap with a single bolted/threaded joint
• Can be full port or reduced port because the ball is captured between the two halves, not inserted through the pipeline end
• More robust and versatile than one-piece, still relatively economical
• Some designs allow limited disassembly for internal inspection, but removal from the line is usually required

Engineers often select two-piece valves as the default general-service ball valve in industrial plants when some maintainability is desired but budget is constrained.

Three-piece ball valve

A three-piece ball valve uses a modular ball valve construction: a central body containing the ball and stem, clamped between two end caps connected to the piping.

Key characteristics:

• One center section + two end caps, bolted or clamped together
• End caps remain welded, threaded, or flanged to the line; the center section can be removed independently
• Commonly full port, with excellent Cv and minimal pressure drop
• True inline maintainability: seats, seals, and even the ball can be replaced without disturbing the pipe connections

This style is favored in applications governed by standards such as API 6D, ASME B16.34, and ISO 17292 where maintainability, hygiene, or high cycle life are key.

Basic structural comparison

Table notes: Figures are indicative engineering guidance; confirm against the governing standard and your specific service conditions.

*Excludes stem packing and internal seat seals.

Structural Design Differences: End Entry vs Split Body vs Modular

Beyond piece count, the way the body opens up—and how the ball is installed—drives performance and maintenance behavior.

One-piece: End-entry, reduced leak paths, often reduced port

A one-piece valve's end-entry design means the ball must fit through the end bore. To keep body size reasonable, manufacturers typically use a reduced port ball, with a flow opening smaller than the pipe ID.

Implications:

• Fewer leak paths: essentially no split-body gasket, which reduces potential external leakage points.
• Lower weight: less metal for the same pressure class (e.g., ~8 lb for a typical 2", Class 600 carbon steel).
• Flow capacity: lower Cv than a full port valve of the same size; acceptable for many isolation duties but not ideal where pressure drop is critical.
• Limited access: the integral structure makes it difficult to access internals without destroying factory seals or threads.

Two-piece: Split body, full port capability

A two-piece split body can be joined at a flange or threaded cap. The split occurs away from the pipeline bore, allowing the use of full port balls matching the pipe ID.

Implications:

• Port options: readily available in full port, maintaining high Cv comparable to the pipeline.
• Seat access from one end: by removing the cap, technicians can access the seats and ball from one side.
• More joints than one-piece: one major body joint introduces an additional potential leak path.
• Moderate weight: more material than one-piece; a typical 2", Class 600 carbon steel two-piece valve weighs roughly 12 lb.

Three-piece: Modular, fully removable center section

A three-piece modular design uses bolted body clamps to sandwich the center section between two end caps.

Implications:

• Inline serviceability: removing the body bolts allows the center section to be taken out while the end caps stay welded, threaded, or flanged to the line.
• Consistent full port: most 3-piece industrial valves are full port, yielding high Cv and low pressure drop.
• Highest weight: more material and hardware (~16 lb for a 2", Class 600 carbon steel valve).
• Higher assembly complexity: more bolts and gaskets to manage, but also more flexibility (steam jackets, cavity relief, specialty seats).

Design comparison (2" carbon steel, Class 600 typical)

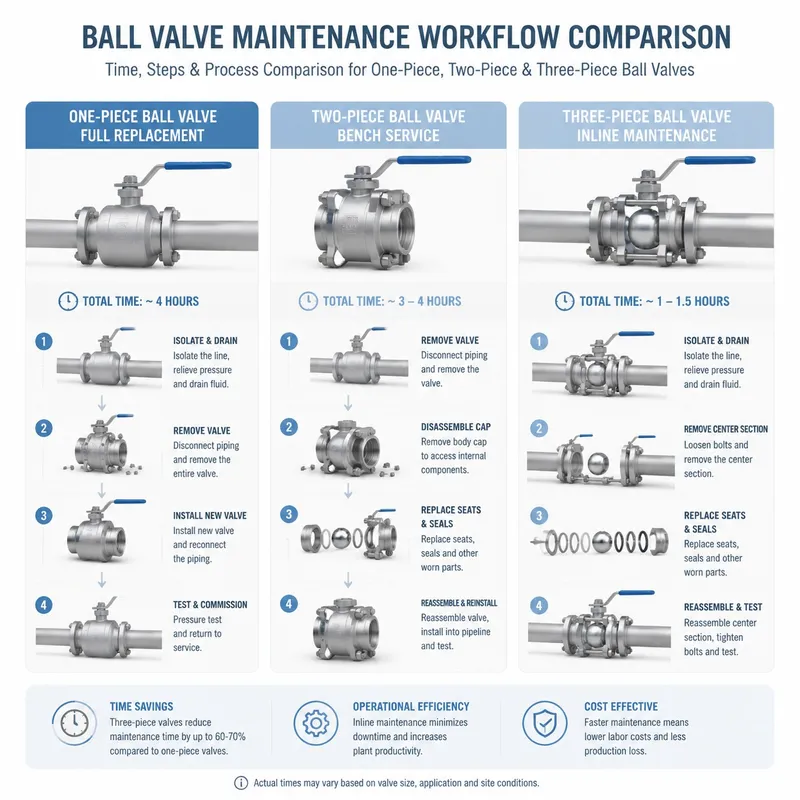

Maintenance Comparison: Inline Serviceability vs Bench Repair

For industrial engineers and maintenance planners, serviceability often matters more than small differences in Cv or weight. The piece count fundamentally defines how maintenance is executed.

Three-piece: True inline maintenance (60–90 minutes)

In a three-piece ball valve, maintenance typically involves:

1. Isolating the line and relieving pressure.
2. Unbolting the body clamps while leaving end caps connected to the pipe.
3. Removing the center section, then replacing seats, seals, and the ball as needed.
4. Reinstalling the center section, tightening bolts to specified torque, and leak testing.

Because the piping remains in place:

• No cutting or re-welding is needed.
• Access is straightforward, especially in crowded pipe racks or offshore modules.
• A skilled technician can complete a seat and seal replacement in 60–90 minutes for a 2" valve once the line is depressurized.

This is why three-piece valves are preferred in systems where shutdown windows are short and frequent (steam tracing, clean-in-place processes, high-cycle utilities).

Two-piece: Partial access, typically 2–3 hours with valve removal

Two-piece valves theoretically allow disassembly by removing the end cap. In practice:

• Threaded units must be unscrewed from the pipe, which can cause thread galling or require heat and significant force.
• Flanged designs still require the entire valve to be separated from both pipe flanges for convenient bench work.
• Once removed, internal parts can be inspected; some designs support seat replacement kits.

Typical maintenance steps:

1. Isolate and drain the line.
2. Unbolt or unthread both sides, remove the valve from the line.
3. Move valve to a bench, disassemble cap and body, replace seats/seals (if supported).
4. Reinstall, torque flanges/threads, and leak test.

Total time commonly runs 2–3 hours per valve, plus any additional time handling insulation, scaffolding, or confined-space issues.

One-piece: Replacement rather than repair (4+ hours including downtime)

One-piece valves are rarely serviced internally in the field. Once seats or stem seals fail, the cost and complexity of opening the body outweigh the valve's value. Typical practice:

1. Isolate and drain the line.
2. Cut out a welded valve or unthread it (often requiring penetrating oil, heat, and significant effort).
3. Install a new valve, re-weld or re-thread, re-pressurize, and leak test.
4. Send the old valve to scrap or factory refurbishment (if available).

Even if the physical replacement is only 2–3 hours of craft labor, coordination, permits, draining, and re-commissioning often extend total impact to 4+ hours of system downtime.

Maintenance comparison table (2" CS, Class 600 typical)

Assuming a single seat/seal service event:

*Excludes waiting time within shutdown schedules; assumes access is available.

Cost Analysis: Initial Purchase vs 10-Year Lifecycle

Initial valve price is only one part of the economic picture. For many plants, downtime cost dominates.

Typical initial purchase cost (2", CS, Class 600)

For a standard carbon steel, 2", Class 600 floating ball valve:

• One-piece: ~$35–80
• Two-piece: ~$50–150
• Three-piece: ~$100–350

These ranges vary by brand, country of origin, end connection, and certification (e.g., fire-safe, API 6D or ISO 17292 compliance).

Maintenance parts cost

For wear components on a 2" valve:

• One-piece: true seat/seal kits are often not supplied; when available, they typically run $50–70, but most users simply replace the valve ($70 average).
• Three-piece: seat and seal kits are widely available in the $20–30 range for PTFE or filled PTFE.
• Two-piece: where supported, seat kits are usually between these levels (e.g., $30–50).

Lifecycle model: 10 years, 2 maintenance events per year

Assumptions:

• Evaluation period: 10 years
• Service: moderate-to-high cycle use requiring 2 seat/seal events per year
• Downtime cost: $500/hour (typical for mid-scale process units; many sites are higher)
• Labor time and downtime per event:
  • One-piece: 4 hours downtime (full replacement)
  • Two-piece: 3 hours downtime
  • Three-piece: 1.5 hours downtime

Annual maintenance cost (excluding initial purchase)

• One-piece: 2 replacements/year × ($70 valve + 4 h × $500) = 2 × ($70 + $2,000) = $4,140/year
• Two-piece: 2 events/year × ($40 parts average + 3 h × $500) = 2 × ($40 + $1,500) = $3,080/year
• Three-piece: 2 events/year × ($25 seat kit + 1.5 h × $500) = 2 × ($25 + $750) = $1,550/year

10-year cumulative cost example (single valve)

Assume mid-range initial prices: one-piece $70, two-piece $100, three-piece $200.

From this illustrative model, the three-piece valve overtakes the one-piece on total cost by around year 3–4, even though it costs more than twice as much at purchase. The cross-over point moves earlier as downtime cost or maintenance frequency increases.

For low-cycle, non-critical services with minimal planned maintenance, the initial savings of one-piece or two-piece valves often remain compelling. For any application with scheduled turnarounds or repetitive maintenance tasks, the three-piece design tends to be the economic winner over a 10-year horizon.

Application Suitability by Industry

The "best" body style depends on service severity, maintenance philosophy, and cost of downtime.

One-piece ball valve: Low-cost, non-critical isolation

Typical uses:

• HVAC and building services: chilled water, low-pressure heating loops, where access is easy and valves are commodity items.
• OEM skid-mounted equipment: tight weight and cost budgets, standardized designs where entire skids are swapped or serviced offsite.
• Low-pressure water and utility lines: where small pressure drops and occasional leaks are acceptable.
• Non-critical isolation: drain lines, temporary hookups, or bypasses where replacement is easier than in-place repair.

Key advantages:

• Lowest purchase price per size/pressure class
• Compact and lightweight, simplifying support structures
• Fewer leak paths in benign services

Two-piece ball valve: General industrial workhorse

Typical uses:

• Chemical plants and refineries (non-critical duties): process and utility lines where full port is required but maintenance frequency is modest.
• Water treatment plants: main process lines with infrequent cycling and planned annual maintenance.
• General process plants: hydrocarbon services, solvents, and inert gases in lines where valves can be worked on during scheduled shutdowns.

Strengths:

• Full port capability with good Cv
• Reasonable pressure/temperature ratings consistent with ASME B16.34 and MSS SP-72 designs
• Lower initial cost than three-piece, but more versatile than one-piece

Three-piece ball valve: Maintenance- and hygiene-critical services

Typical uses:

• Steam systems and steam tracing: high temperature, thermal cycling, and quarterly packing adjustments; inline serviceability is essential.
• Slurry and abrasive service: wear on seats and ball surfaces demands regular component replacement.
• Food, beverage, and pharmaceutical: frequent teardown for cleaning, sterilization, or inspection; center section removal enables quick CIP/SIP cycles.
• Offshore platforms and FPSOs: difficult access, high cost of scaffolding or hot work; valves must be serviceable in place.
• Critical process units: reactors, high-value product lines, or bottleneck utilities where downtime cost far exceeds valve cost.

In these settings, three-piece valves aligned with API 6D, ASME B16.34, and ISO 17292 are often specified as standard to ensure both mechanical integrity and maintainability.

Selection Decision Framework

When comparing one-piece vs two-piece vs three-piece ball valve options, engineers and buyers can quickly narrow choices using four key questions:

1. How often will the valve be serviced? — High-frequency or planned maintenance → favor three-piece.
2. What is the cost of downtime per hour? — High downtime cost (>$1,000/h) → upfront premium for three-piece typically justified. Low downtime cost → one-piece or two-piece may be more economical.
3. Is full port required for Cv or pigging? — Full port mandatory → favor two-piece or three-piece. Slight pressure drop acceptable → one-piece may suffice.
4. Are weight and space constrained? — Tight spaces, light supports → one-piece or compact two-piece. Ample space and robust pipe supports → three-piece acceptable.

Scenario-based scoring (1 = poor fit, 5 = best fit)

Use these scores as a guide, then refine based on standards (ASME B16.34 rating, fire-safe requirements), materials, and certification needs.
